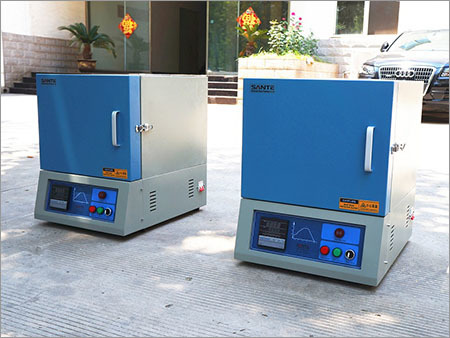

1200 °C Muffle Furnace

1200 °C Muffle Furnace
1200 °C Muffle Furnace
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 600 - 1400 USD ($)
Product Description

A 1800oC Muffle Furnace is a type of furnace having large box which is used in high-temperature applications. Due to its light weight ceramic insulation and A-1 wired heating element, this gives high temperature with uniform heating. Our 1800 C Muffle Furnace found its applications in creating enamel coatings, ceramics, soldering and brazing materials. According to the need, the temperature can be controlled by using energy regulator fixed in the front of the furnace by using two lamps.

1. Furnace material: high purity aluminum oxide ceramic fiber material

2. Rated temperature: 1200

3. Furnace size:

100mm,100mm,100mm/ 150mm,150mm,150mm/180mm,230mm,150mm/200mm,300mm,120mm/200mm,300mm200mm

4. Temperature rise rate: 1-25 /min

5. Temperature control accuracy: ±1

6. Intelligent PID temperature-controlled instrument with programming function, capable of setting temperature rise curve and writing 16 program segments (2 groups)

Technical Specifications:

Model

Volume

Chamber size W x L x H(mm)

Max temp.

Working temp.

Voltage

Power

Heating element

Temp. precision

STM-3-12

3L

150 x 150 x 150

1200°C

1150°C

220V

2KW

HRE

±1°C

STM-6-12

6L

180 x 230 x 150

1200°C

1150°C

220V

2KW

HRE

±1°C

STM-8-12

8L

200 x 300 x 120

1200°C

1150°C

220V

3KW

HRE

±1°C

STM-12-12

12L

200 x 300 x 200

1200°C

1150°C

220V

3KW

HRE

±1°C

STM-18-12

18L

250 x 300 x 250

1200°C

1150°C

220V

3KW

HRE

±1°C

STM-30-12

30L

300 x 500 x 200

1200°C

1150°C

220V

2KW

HRE

±1°C


Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 100 sets Per Month
  • Delivery Time
  • 15 Days
  • Packaging Details
  • Wood box
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Asia
