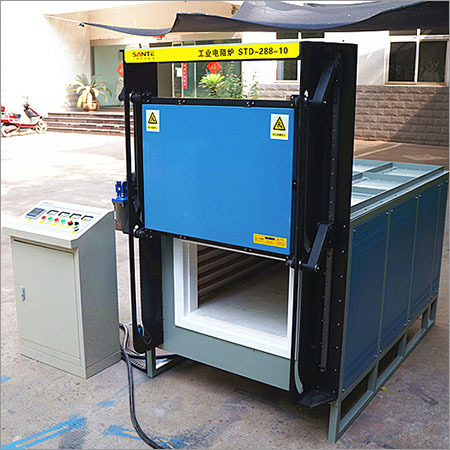

1200℃ Industrial Electric Resistance Furnace

1200℃ Industrial Electric Resistance Furnace
1200℃ Industrial Electric Resistance Furnace
Product Code : 15
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 3500 - 6800 USD ($)
Product Description

Electric Resistance Furnace

Industrial Electric Resistance Furnace engineered by us is well equipped with broad box for high temperature usages. Having grade-A wire heating element and lightweight ceramic insulation, it provides high temperature along with exceptional heating. This type of furnace has use in making enamel coatings soldering, ceramics and brazing materials as well. As per requirement, the temperature can be regulated by making use of energy regulator fitted in the front utilizing tow lamps. Moreover, the Industrial Electric Resistance Furnace comes in several models & designs to select from.

1. Furnace material: high purity aluminum oxide ceramic fiber material

2. Rated temperature: 1200

3. Furnace tube size: 400mm, 600mm, 400mm/600mm, 800mm, 600mm/800mm, 1000mm, 800mm

4. Temperature rise rate: 1-15 /min

5. Temperature control accuracy: ±1

6. Intelligent PID temperature-controlled instrument with programming function, capable of setting temperature rise curve and writing 16 program segments (2 groups)

Technical Specifications:

Model

Volume

Chamber size W x L x H(mm)

Max temp.

Working temp.

Voltage

Heating element

Temp. precision

STD-96-12P

96L

400 x 600 x 400

1200°C

1100°C

380V

HRE

±1°C

STD-288-12P

288L

600 x 800 x 600

1200°C

1100°C

380V

HRE

±1°C

STD-640-12P

640L

800 x 1000 x 800

1200°C

1100°C

380V

HRE

±1°C

STD-1200-12P

1200L

1000 x 1200 x 1000

1200°C

1100°C

380V

HRE

±1°C

STD-2160-12P

2160L

1200 x 1500 x 1200

1200°C

1100°C

380V

HRE

±1°C

Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 100 sets Per Month
  • Delivery Time
  • 30 Days
  • Packaging Details
  • Wood box
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Asia
